Series 4 Depositor

Enquiry

Description

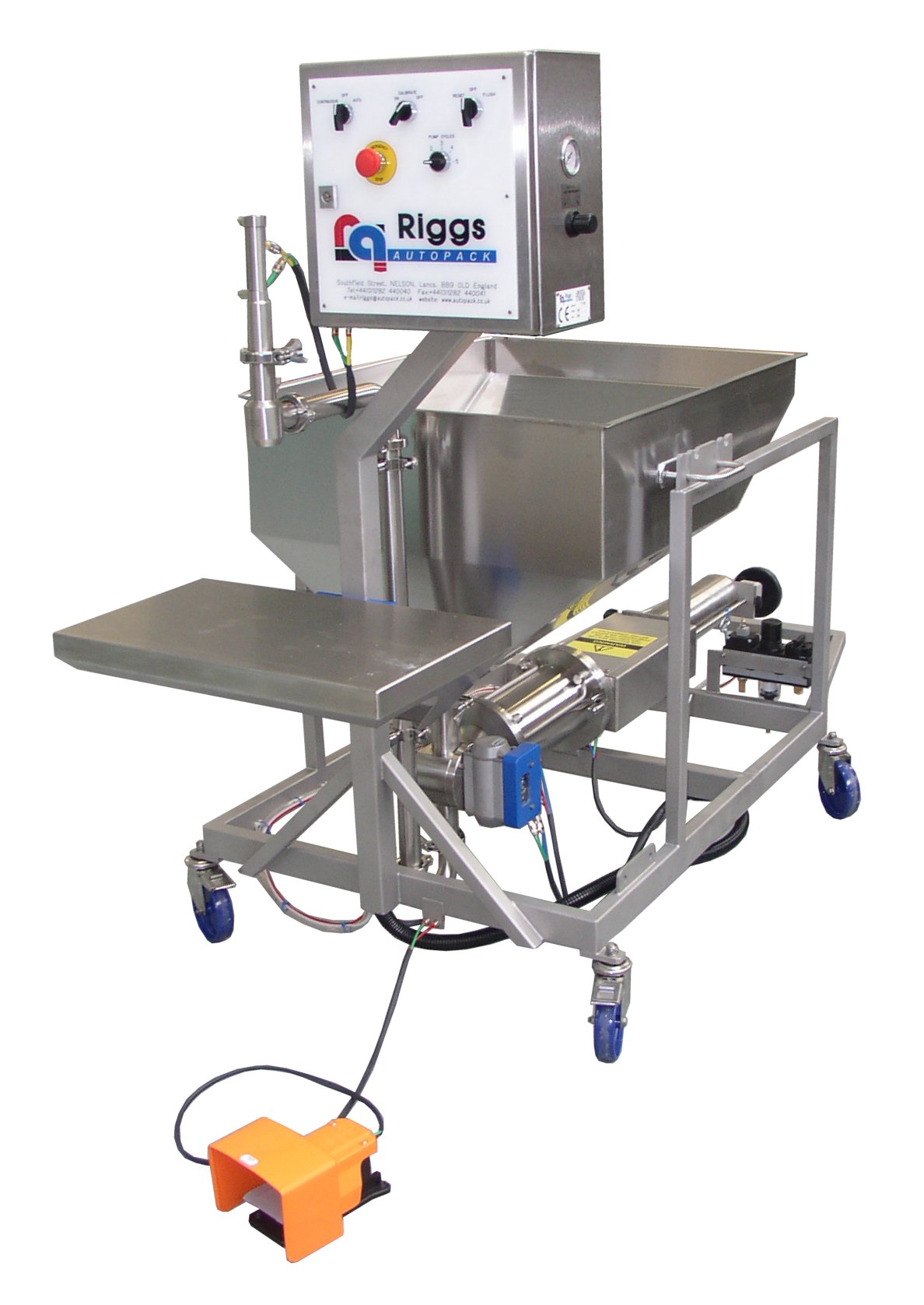

Our Series 4 depositor is suitable for artisans, start-up firms, and medium to large scale food producers using conveyors, rotary pot machines or VFFS. This high quality volumetric depositor provides damage free depositing of hot or cold liquid, semi-liquid and suspended solid products, and accurately fills most types of container.


Features

Semi-automatic with foot pedal control
Fully automatic for use with a conveyor
Choice of piston & barrel size
Fixed position cut-off valve or hand held with flexible hose
100 litre product hopper
Mobile frame with lockable castors
316 stainless steel in all product contact areas
Simple to operate, hygienic & easy to clean
Requires compressed air supply
12 months warranty
Full after-sales support


Piston & Barrel Sizes

Standard Range

1000 (1.5) 10ml - 170ml
1000 (2.285) 25ml - 400ml
1000 (2.8) 50ml - 600ml
1000 (4.0) 125ml - 1200ml

Maxi Range

1000 (5.125) 200ml - 2500ml
1000 (5.125s) 200ml - 3300ml
1000 (6.5) 500ml - 5000ml
