Model 1000, 1001, 1002 Range

The main stay of Riggs Autopack's business is our Model 1000 standard depositors, filling machines and transfer pumps, Model 1001 bespoke depositors, and Model 1002 automatic conveyor filling lines. To complement our depositing and filling machinery, we also manufacture and supply a range of ancillary equipment.

We design and build our high quality food processing depositors and filling machinery at our Lancashire factory, and supply throughout the UK and overseas to the food production industry. They are available as a semi-automatic unit with foot pedal operation for small scale food producers utilising short batch runs, or fully automatic for medium to large scale food producers using conveyor lines.

With fully adjustable depositing volumes and speeds, our volumetric piston pump depositors and filling machines provide damage free depositing of hot or cold liquid, semi-liquid and suspended solid products, and accurately fill most types and size of container.

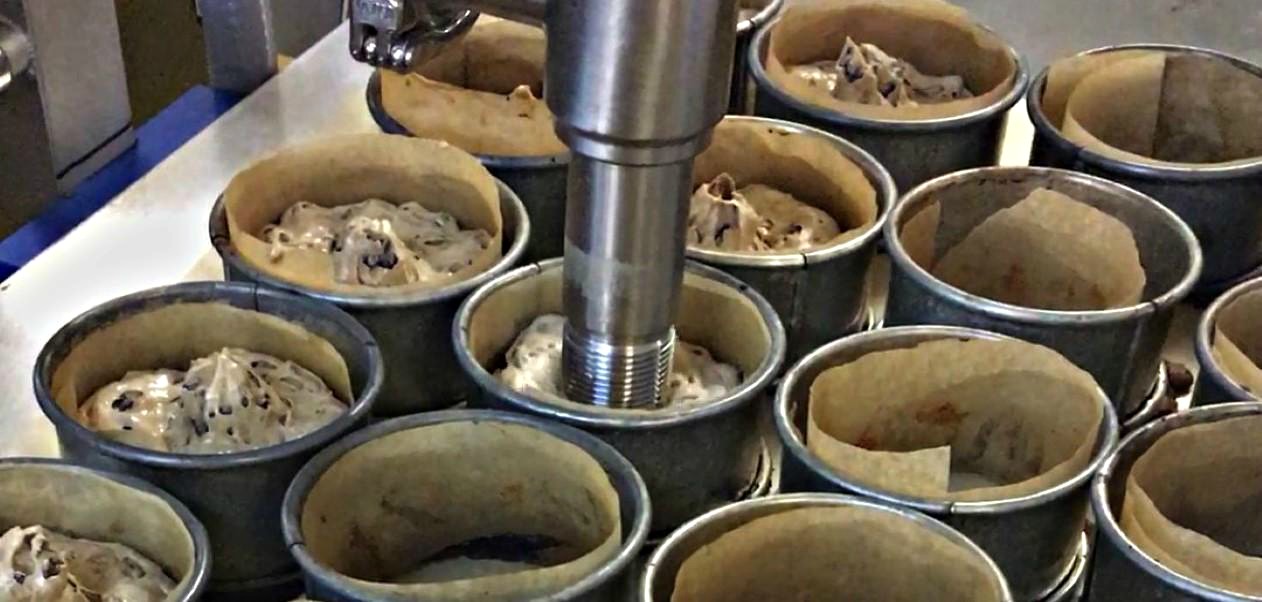

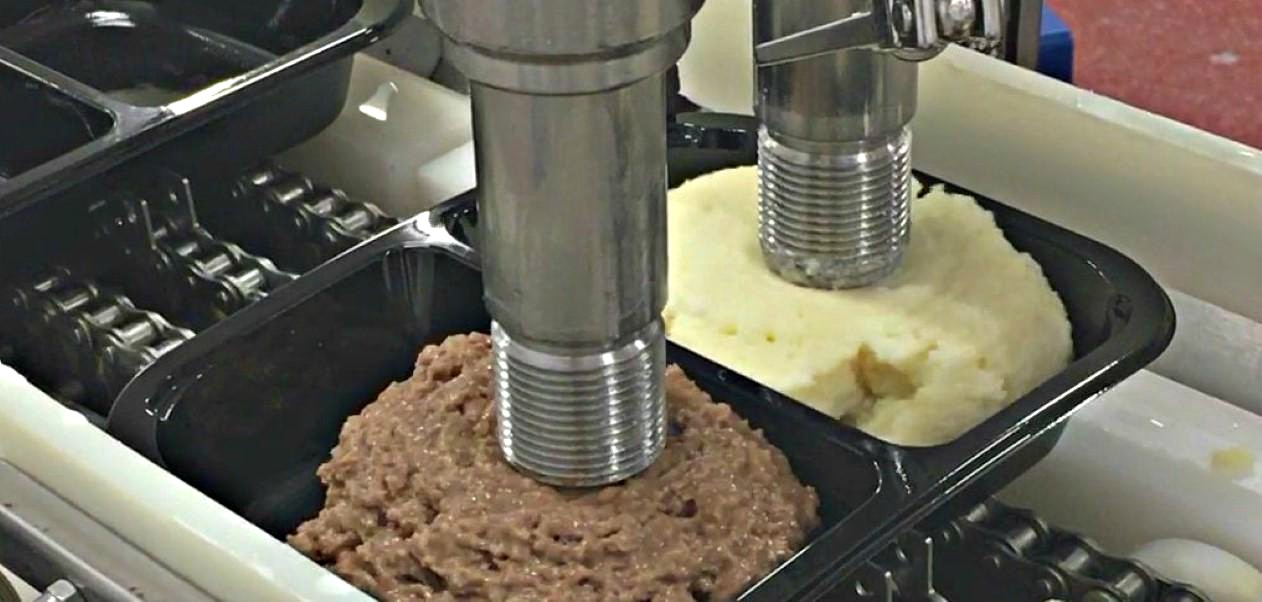

Typical goods manufactured using our depositors and filling equipment include jam, marmalade, pickles, chutney, relish, honey, condiments, sauces, dips, dressings, marinades, smoothies, soup, ready meals, coleslaw, pate, quiche, sandwich and pie fillings, dairy, bakery and seafood products, cake, pudding and dessert ingredients.

Semi-Automatic Applications

This requires an operator to place an empty container underneath the depositing nozzle of the filling machine, and the product depositing is then initiated by means of pressing a foot pedal. At the end of the product depositing, the filled container is manually removed from the filling area by the operator. The process is then repeated. Our range of semi-automatic filling machines can be easily converted to fully automatic and operate in conjunction with a conveyor if production levels increase at a later date.

Fully Automatic Applications

An empty container is automatically presented underneath the depositing nozzle via a conveyor. The filling machine, which can be a single or multi-head configuration, then accepts an external signal from the conveyor to start the automatic product depositing into the container. At the end of this product depositing, the filled container is automatically removed from the fill position and the process is repeated.
